Name c-fos glomerular activation patterns for H-2k male mouse urine odor

Description From nonestrous female mice

Species Mouse

Strain BALB/C (H-2d)

Sex Female

Age 12 to 20 weeks

Weight

Brain Region Main olfactory bulb

Sub Region Glomerular layer

Side

View Ventral

Serial Number

Odor

Odorant Blend Male Mouse Urine (H-2K) Show Other Fresh Air Show Other

Concentration 20% v/v of urine (1:5 dilution)

Exposure Time 30 minutes

Exposure Frequency 3 min at 5 min intervals

Method c-fos in situ hybridization Show Other

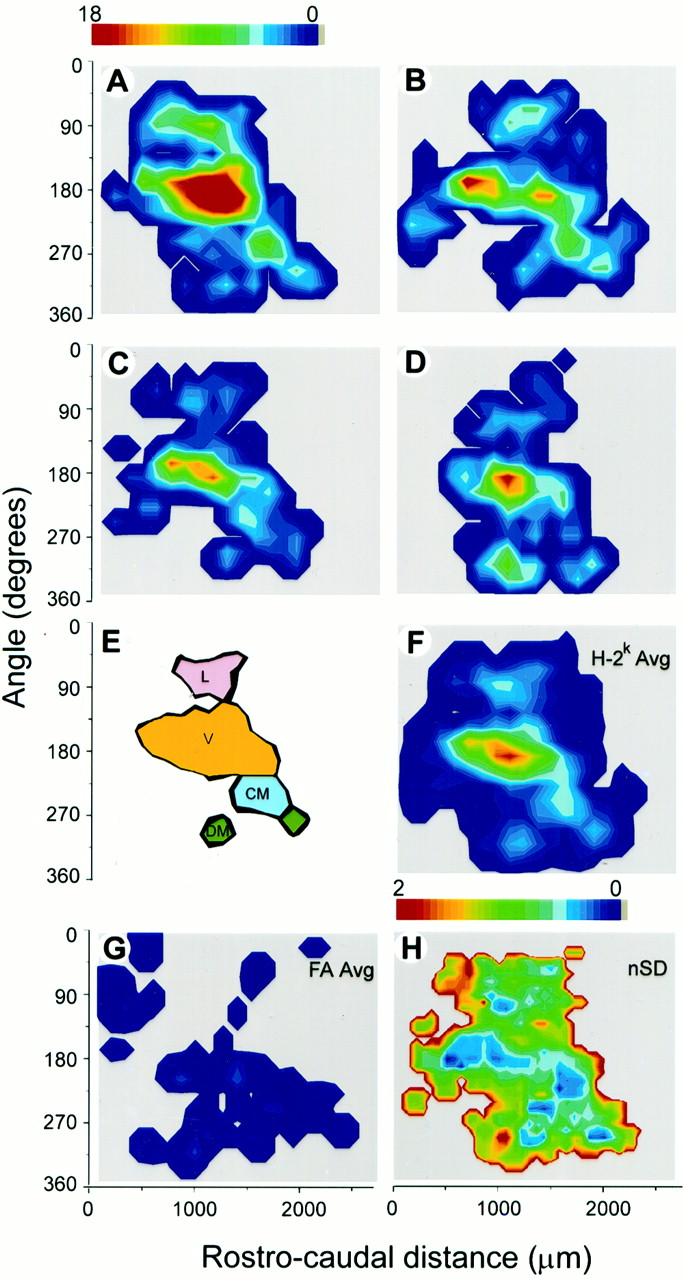

Note c-fos glomerular activation patterns for H-2k male urine odor in the main olfactory bulbs of H-2d female mice. A-D, F-G, Color contour maps of evoked glomerular activity. A-D, Individual H-2k urine odor maps. F, Average H-2k urine odor map constructed from A-D. E, Diagram illustrating regions of activity in the main olfactory bulb as shown in F. L, Lateral; V, ventral; CM, caudomedial; DM, dorsomedial. G, Control showing average map for mice exposed to fresh air (n = 3). H, Normalized SD (SD/average) map for A-D. Color bar on the top of A shows the density of active glomeruli (number of positive glomeruli per bin) for A-D and F-G. Color bar on the top of H shows the range of the variability (two is most variable) in H.

Authors Michele L. Schaefer, David A. Young, and Diego Restrepo

PubMed_ID 11264322

Map Picture

Scan Number Control

Scan Number Stimulate

Subject Count 3 controls, 4 exps

Image Resolution

Image Size

Primary Data

Behavioral Study
